Product Description

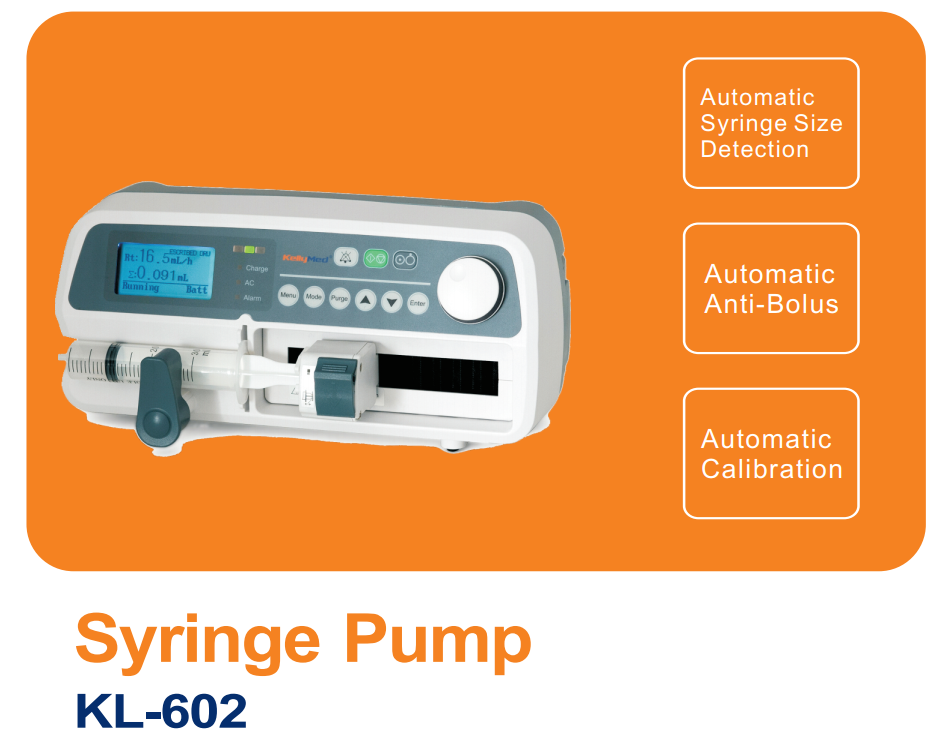

Syringe Pump KL-602
- N/A
- N/A
Specifications
| Model | KL-602 |
| Syringe Size | 10, 20, 30, 50/60 ml |
| Applicable Syringe | Compatible with syringe of any standard |
| VTBI | 0.1-9999 ml ＜1000 ml in 0.1 ml increments ≥1000 ml in 1 ml increments |
| Flow Rate | Syringe 10 ml: 0.1-400 ml/h Syringe 20 ml: 0.1-600 ml/h Syringe 30 ml: 0.1-900 ml/h Syringe 50/60 ml: 0.1-1300 ml/h ＜100 ml/h in 0.1 ml/h increments ≥100 ml/h in 1 ml/h increments |
| Bolus Rate | 400-1300 ml/h, adjustable |
| Power Supply, AC | 110/230 V (optional), 50/60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 7 hours at 5 ml/h |
| Working Temperature | 5-40℃ |
| Relative Humidity | 20-90% |
| Atmospheric Pressure | 860-1060 hpa |
| Size | 314*167*140 mm |
| Weight | 2.5 kg |
| Safety Classification | Class Ⅱ, type CF |
| Additional Features | Real-time infused volume, automatic power switching, automatic syringe identification, mute button, purge, bolus, anti-bolus, system memory, key locker |
| Infusion Mode | Flow rate: ml/min, ml/h Time-based Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h, etc. |
| KVO Rate | 0.1-1 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off |
| Occlusion Sensitivity | High, medium, low |
| Drug Library | Available |
| Accuracy | ±2% (mechanical accuracy ≤1%) |
| Anti-Bolus | Automatic |
| Wireless Management | Optional |
