Product Description

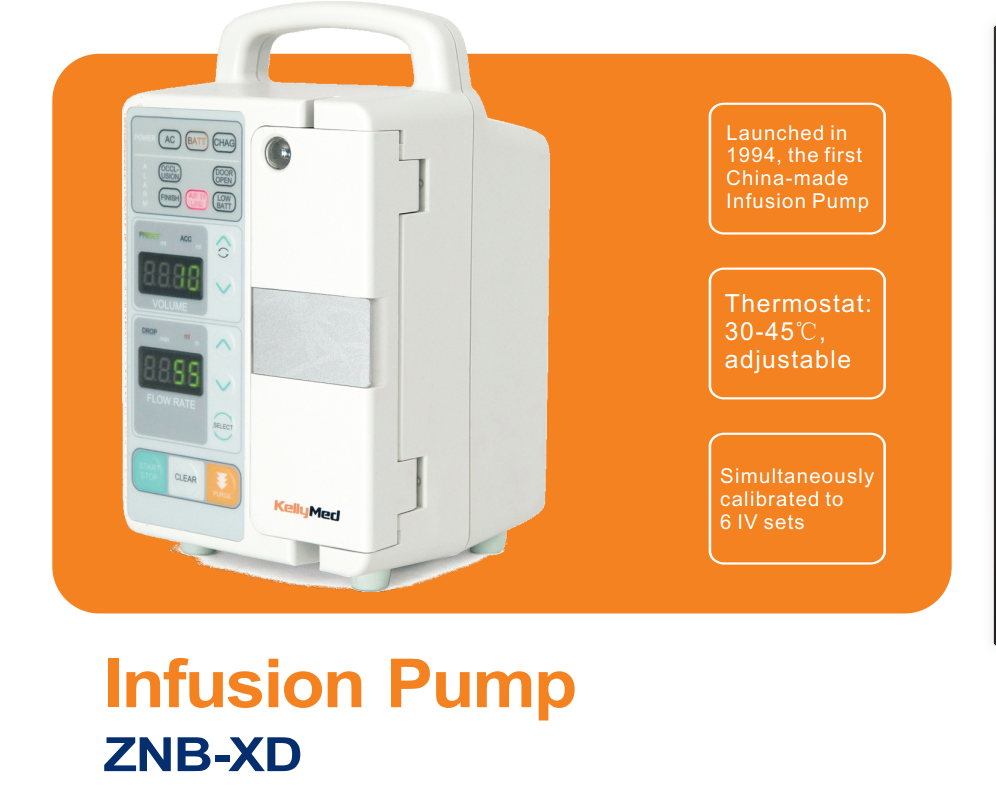

Infusion Pump ZNB-XD
- N/A
- ZNB-XD
Specifications
| Model | ZNB-XD |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 1-1100 ml/h (in 1 ml/h increments) |
| Purge, Bolus | Purge when pump stops, bolus when pump starts, rate at 700 ml/h |
| Accuracy | ±3% |
| VTBI | 1-9999 ml |
| Infusion Mode | ml/h, drop/min |
| KVO Rate | 4 ml/h |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
| Additional Features | Real-time infused volume, automatic power switching, mute button, purge, bolus, system memory |
| Occlusion Sensitivity | 5 levels |
| Air-in-line Detection | Ultrasonic detector |
| Power Supply, AC | 110/230 V (optional), 50-60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 5 hours at 30 ml/h |
| Working Temperature | 10-40℃ |
| Relative Humidity | 30-75% |
| Atmospheric Pressure | 700-1060 hpa |
| Size | 174*126*215 mm |
| Weight | 2.5 kg |
| Safety Classification | Class Ⅰ, type CF |
